Vertical Scharr

Filters an image using a vertical scharr kernel.

Inputs

Image (Type: Image)

The input image.

Region (Type: Region)

Specifies an optional area of interest.

Outputs

Image (Type: Image)

The output image.

Comments

The function applies a vertical scharr filter. The corresponding kernel is a 3x3 matrix with the following values:

 3 0  -3
10 0 -10
 3 0  -3

The filter attenuates vertical edges while at the same time smoothing in the vertical direction.

Here are a few results of the horizontal sobel filter with increasing kernel sizes:

Original:

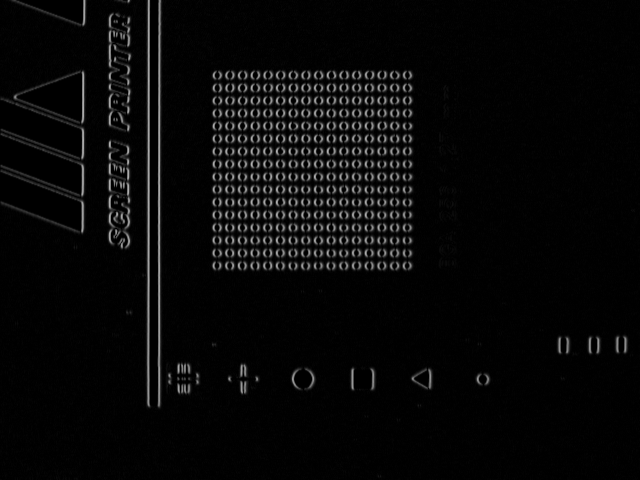

Result:

Sample

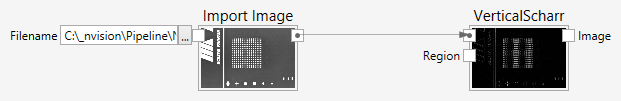

Here is an example that shows how to use the vertical scharr filter.

Often, you want to combine the horizontal and the vertical scharr filter to create an edge map. A simple way to do this is shown in the following sample:

Here is an example image of such an edge map:
