BinaryImageConstantOperator¶
Applies a binary point operation between an image and a constant. Possible operations can be grouped into arithmetic, logic and comparison fields. Binary point operations are applied pixel by pixel, the same way for every pixel.
Arithmetic Operators¶
The following operators are available:

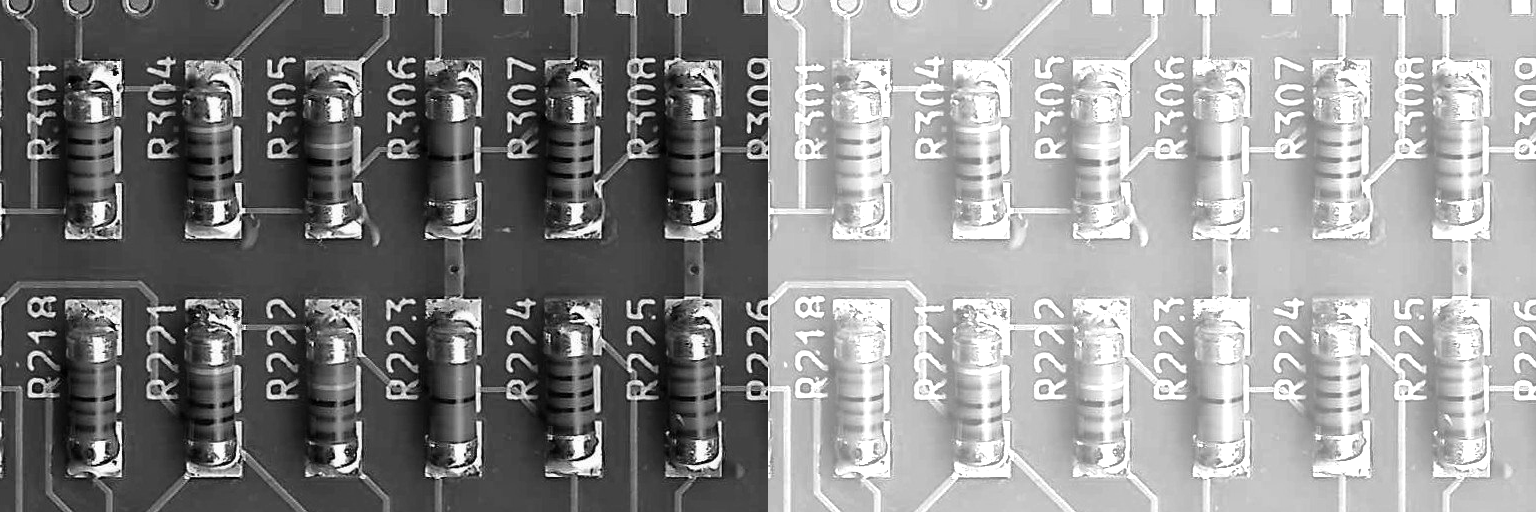

Add
Add with saturation.
Image + Constant -> Result

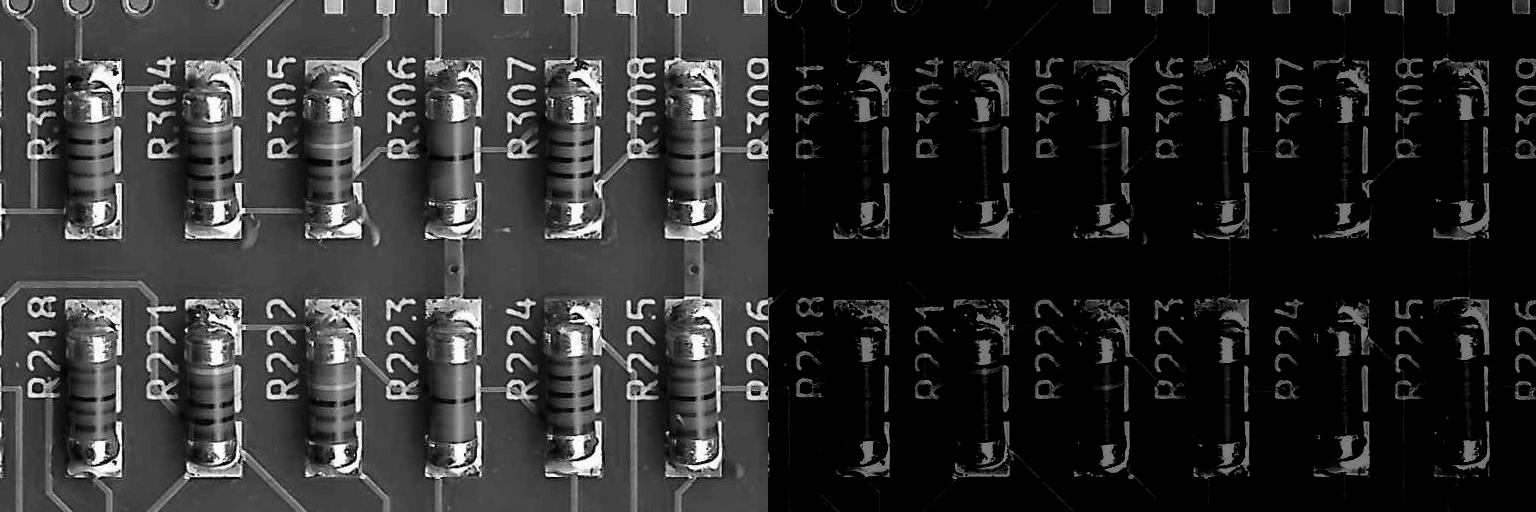

Subtract
Subtract with saturation.
Image - Constant -> Result
Difference
Difference with saturation.
abs ( Image - Constant ) -> Result

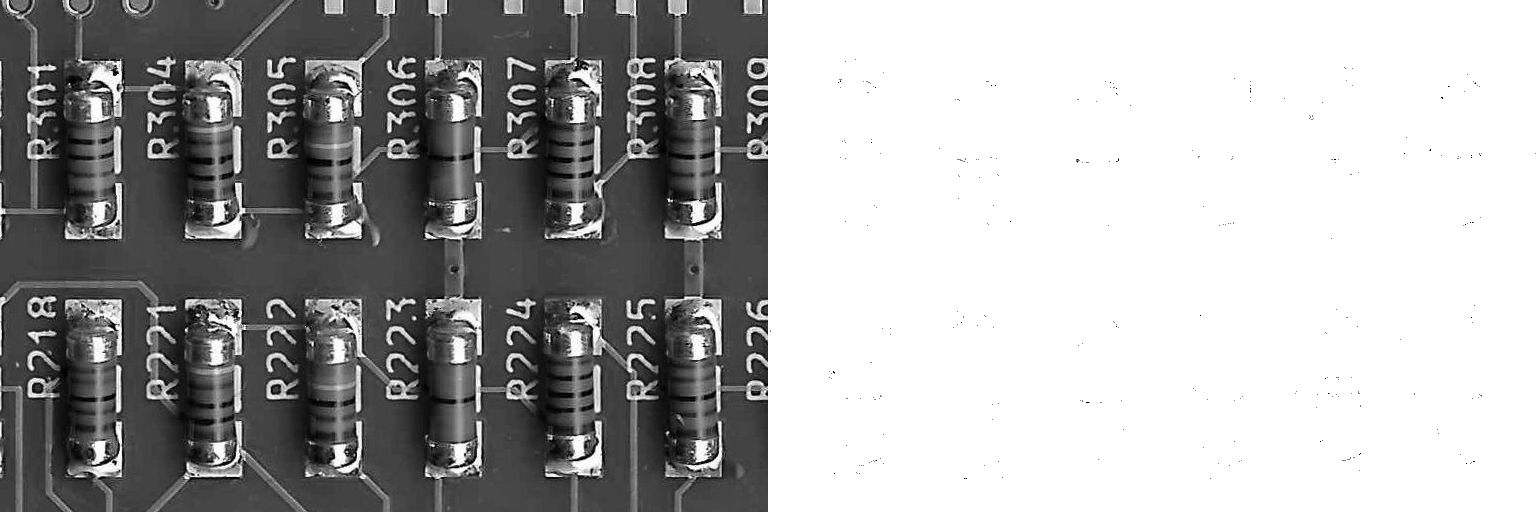

Multiply
Multiply without saturation.
Image * Constant -> Result

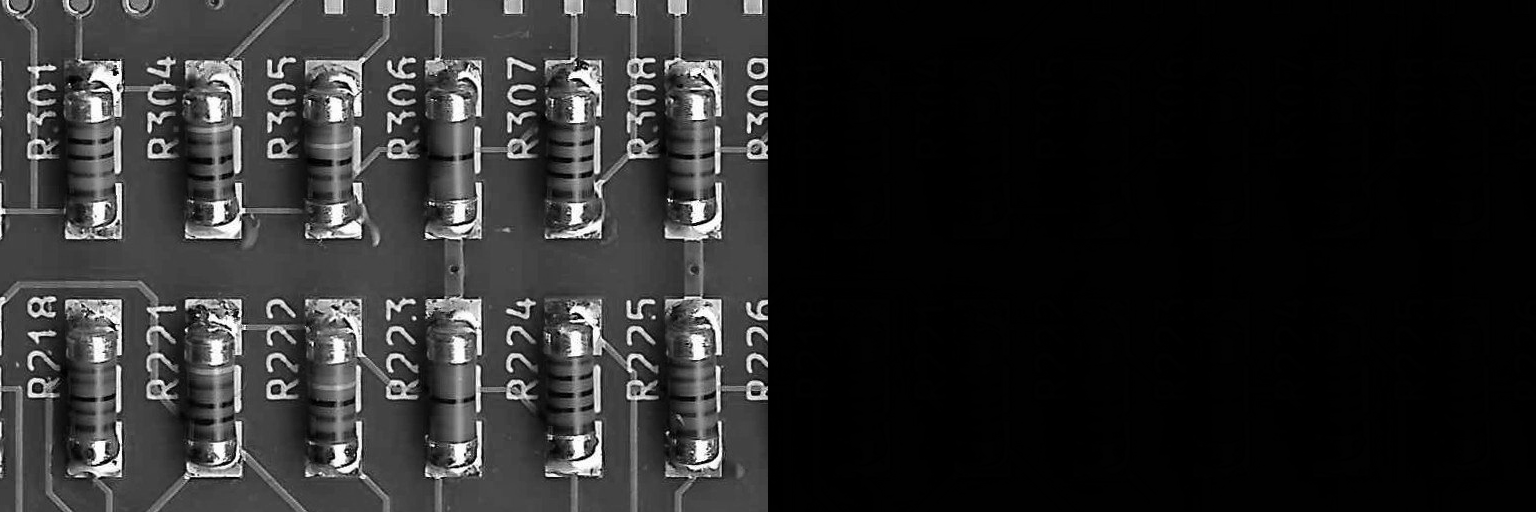

Divide
Divide without saturation.
Image / Constant -> Result

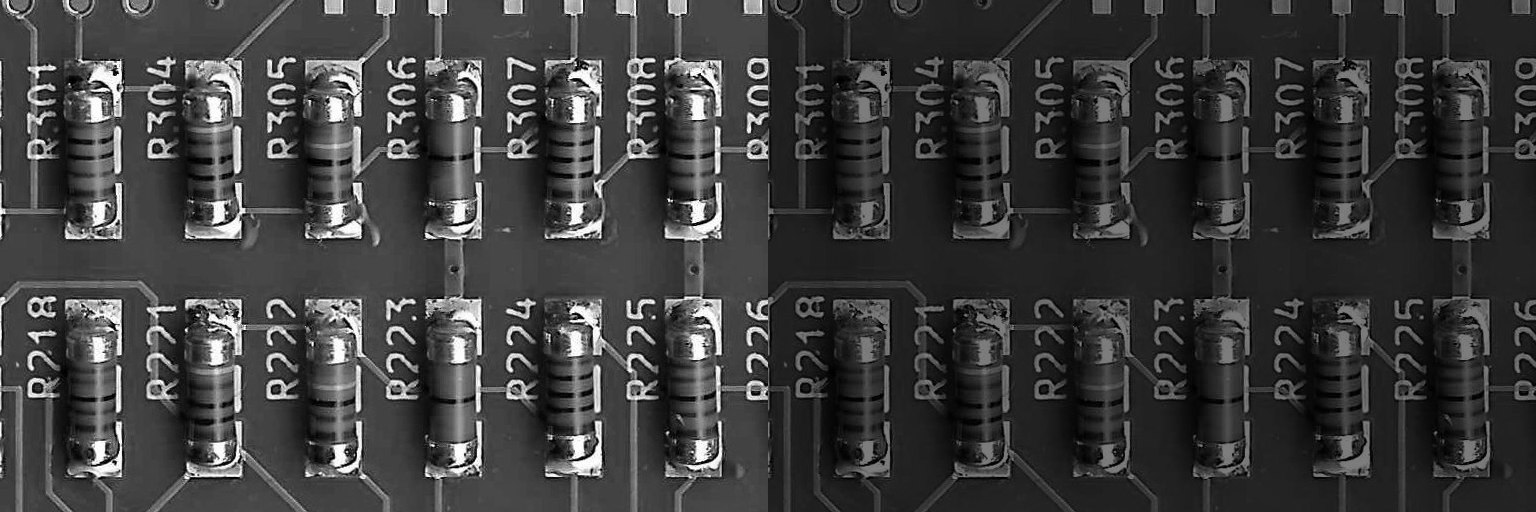

Multiply (Blend)
Multiply with saturation.
Image * Constant -> Result

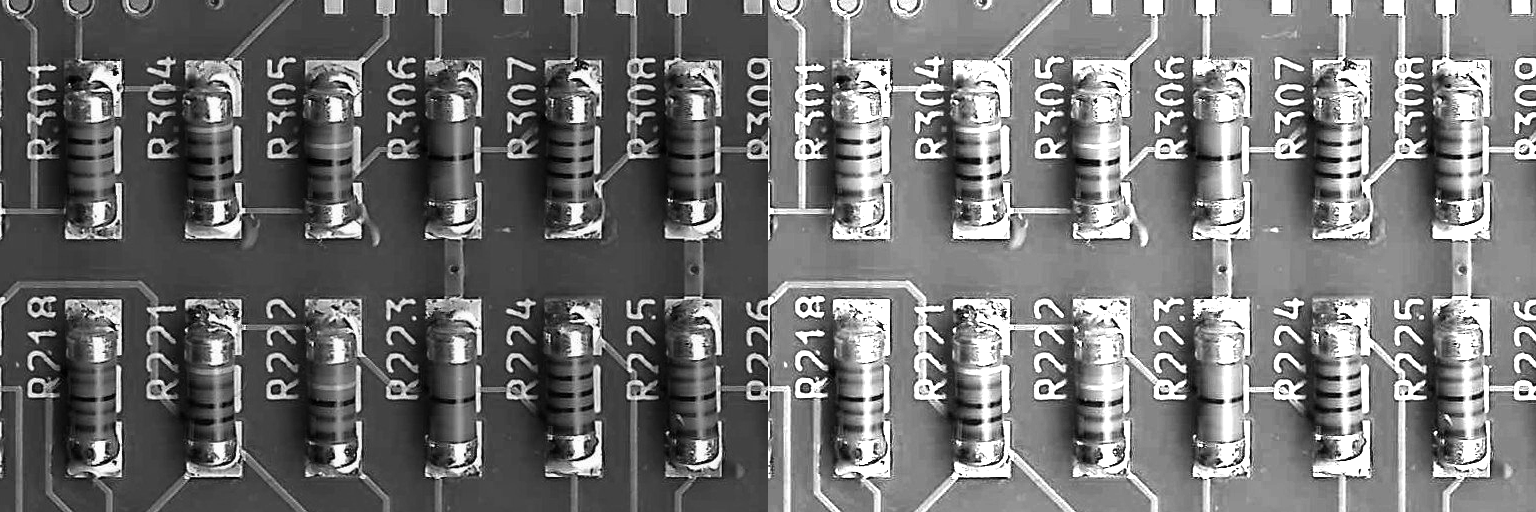

Divide (Blend)
Divide with saturation.
Image / Constant -> Result
Logic Operators¶
The following operators are available:

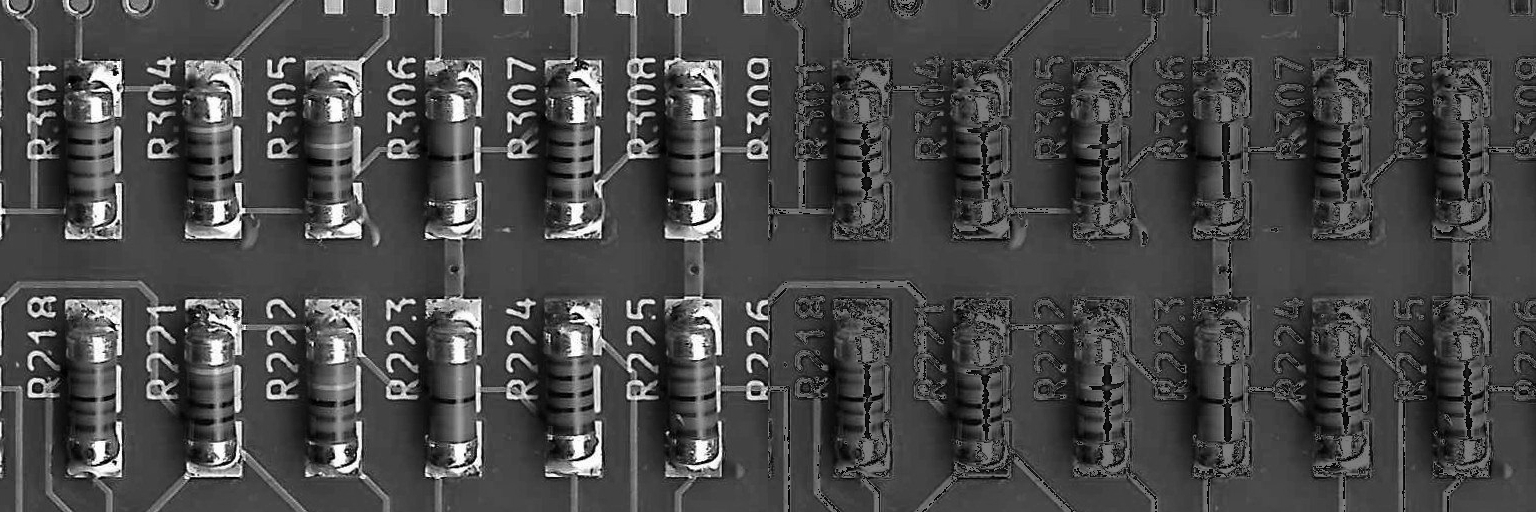

And
Logical And.
Image & Constant -> Result

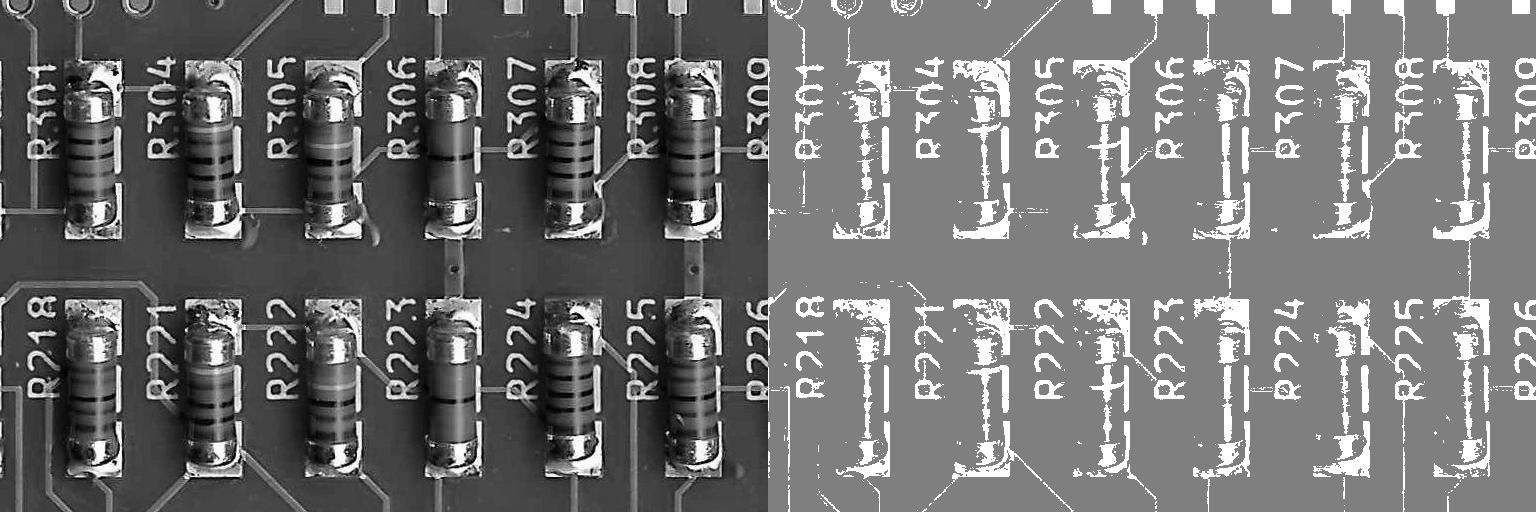

Or
Logical Or.
Image | Constant -> Result

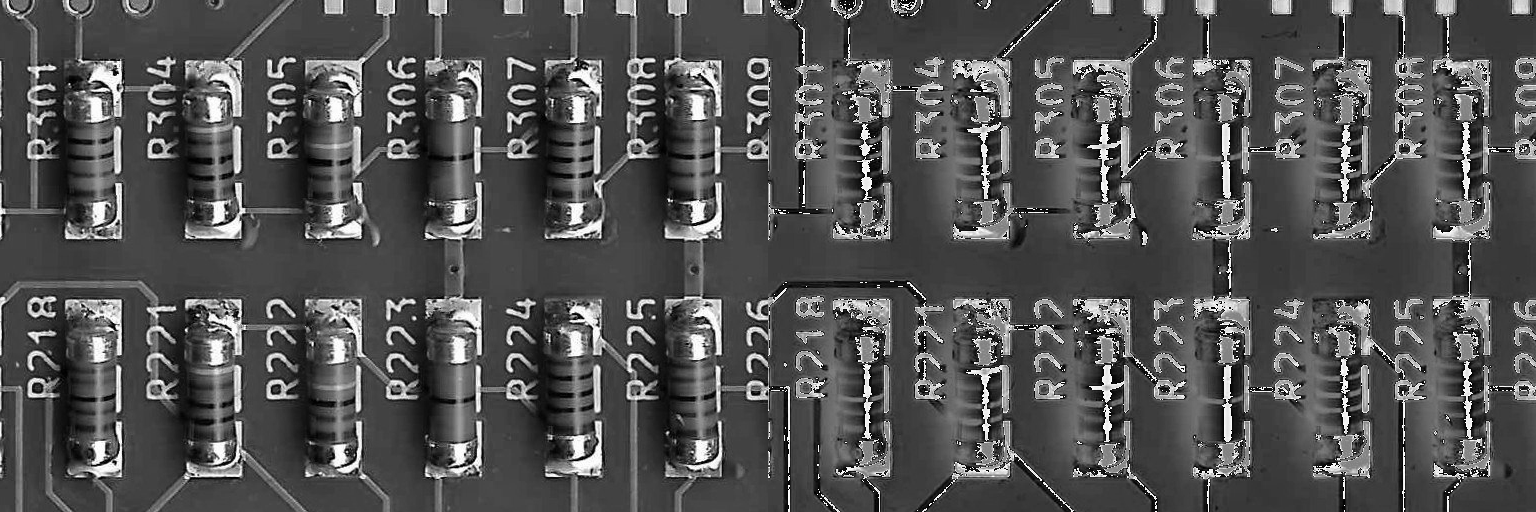

Xor
Logical Xor.
Image ^ Constant -> Result
Comparison Operators¶
The following operators are available:

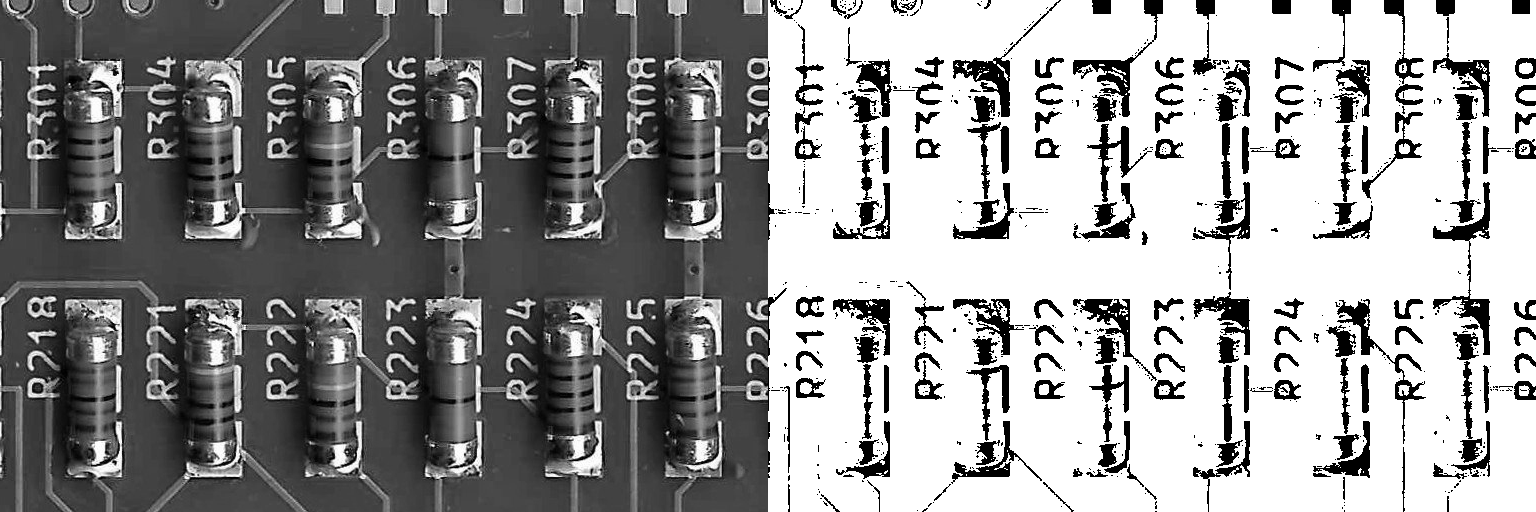

Smaller
Compare smaller.
Image < Constant -> Result

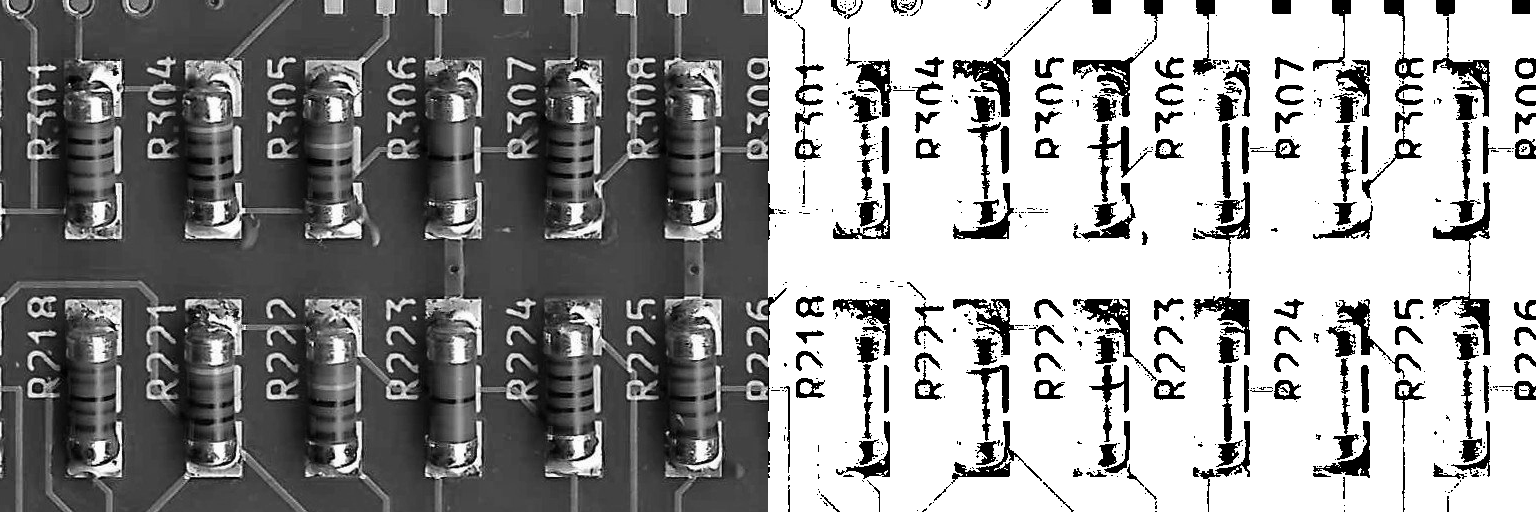

Smaller or Equal
Compare smaller or equal.
Image <= Constant -> Result
Equal
Compare equal.
Image == Constant -> Result

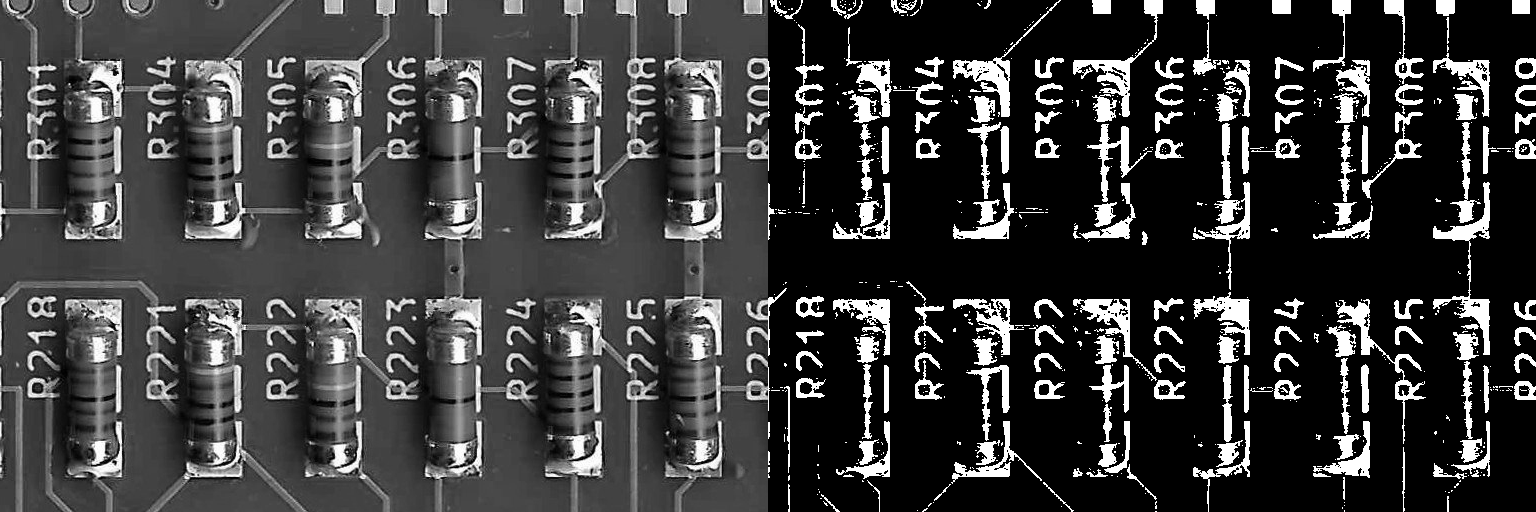

Bigger or Equal
Compare bigger or equal.
Image >= Constant -> Result
Bigger
Compare bigger.
Image > Constant -> Result
Min/Max Operators¶
The following operators are available:

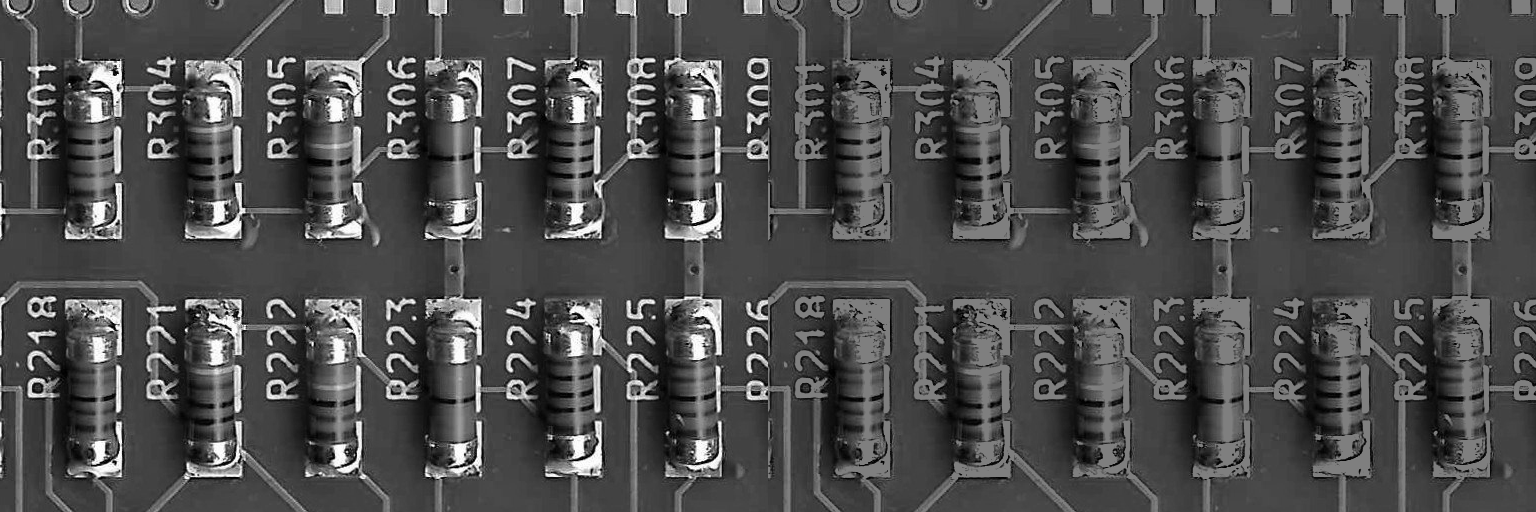

Min
Minimum.
min( Image, Constant) -> Result

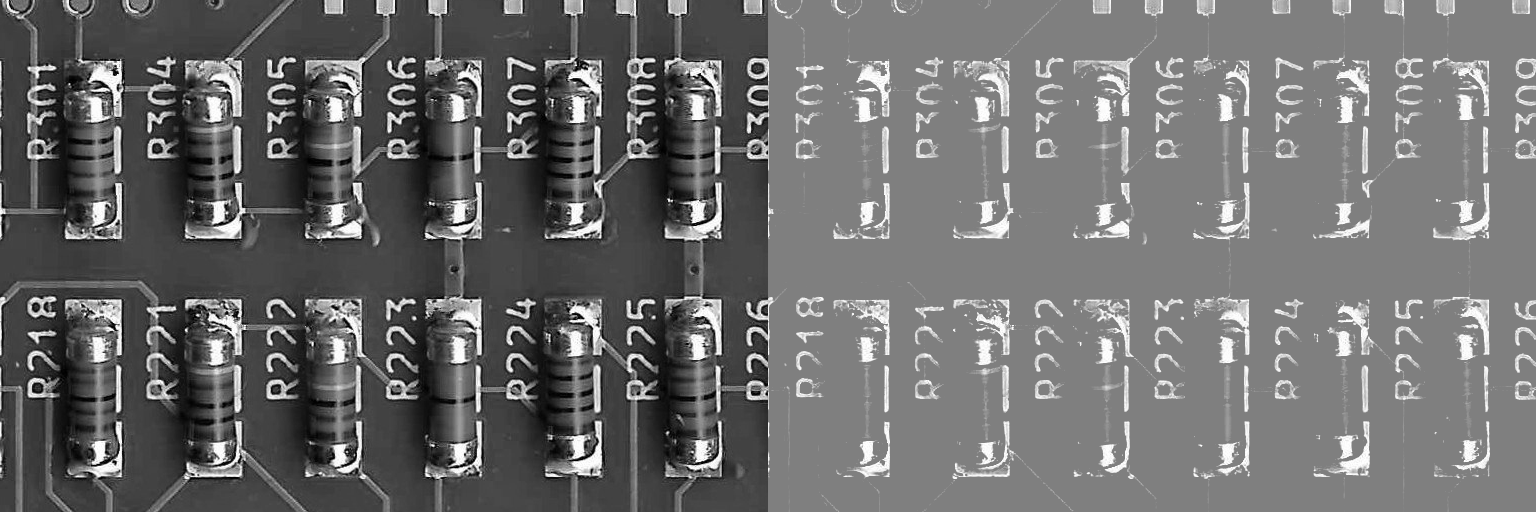

Max
Maximum.
max( Image, Constant) -> Result
Inputs¶
Image (Type: Image)¶
The input image.
Constant (Type: object)¶
The constant.
Operator (Type: string)¶
Specifies the operator.
| operator | operation |
|---|---|
+ |
add |
- |
subtract |
diff |
difference |
* |
multiply |
/ |
divide |
*_blend |
multiply (blend) |
/_blend |
divide (blend) |
& |
and |
| |
or |
^ |
xor |
< |
smaller |
<= |
smaller or equal |
== |
equal |
>= |
bigger or equal |
> |
bigger |
min |
minimum |
max |
maximum |
