Gauss

Filters an image using a gaussian kernel of size 3x3 or 5x5. A gaussian filter is a lowpass and blurs an image.

Inputs

Image (Type: Image)

The input image.

KernelSize (Type: Int32)

The kernel size (3 -> 3x3, 5 -> 5x5).

Region (Type: Region)

Specifies an optional area of interest.

Outputs

Image (Type: Image)

The output image.

Comments

The function applies a gauss filter. The corresponding kernel is either a 3x3 matrix with the following values:

1 2 1
2 4 2
1 2 1

or a 5x5 matrix with the following values:

 2  7  12  7  2
 7 31  52 31  7
12 52 127 52 12
 7 31  52 31  7
 2  7  12  7  2

The effect of a gauss filter is a lowpass. The lowpass filter emphasizes low frequencies and attenuates high frequencies. The strength of the lowpass filter depends on the size of the kernel.

Here are a few results of the gauss filter with increasing kernel sizes:

Original:

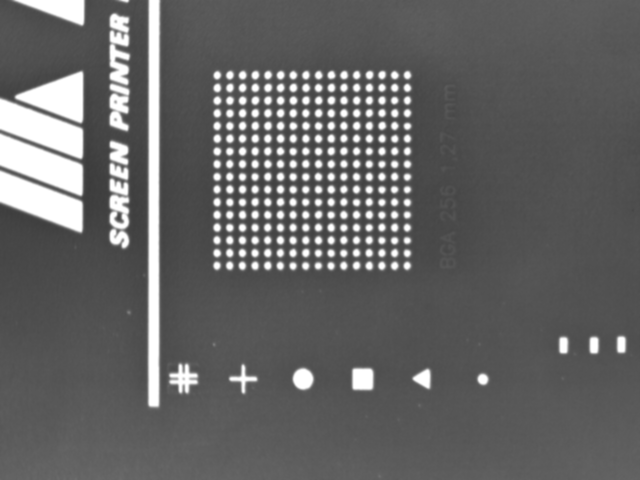

KernelSize = 3:

KernelSize = 5:

Sample

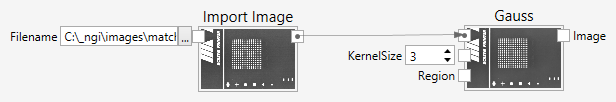

Here is an example that shows how to use the gauss filter.
