Morphological Image Operation

Performs a morphological image operation. Possible operations are erosion, dilation, opening, closing and morphological gradient.

Inputs

Image (Type: Image)

The input image.

Region (Type: Region)

Constrains the function to a region of interest.

Operator (Type: String)

Possible operators are Erosion, Dilation, Closing, Opening and MorphologicalGradient.

Structel (Type: Region)

A structuring element.

Outputs

Flipped (Type: Image)

The output image.

Comments

This function performs several morphological operations.

Given the following original image, we show the results of different morphological operations:

Here is an example of an erosion with a circular structuring element of diameter 10:

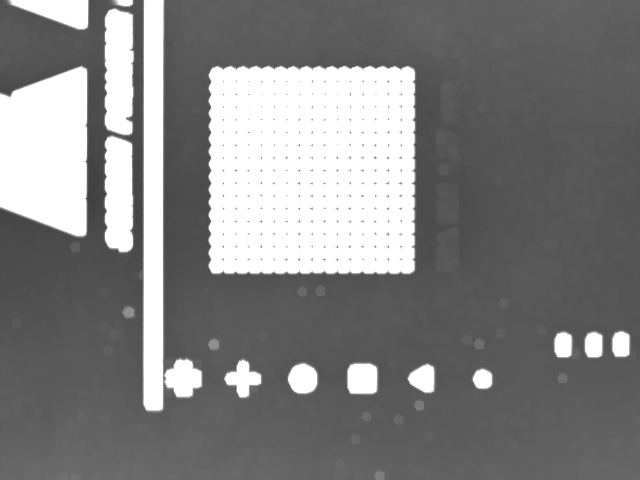

Here is an example of a dilation with a circular structuring element of diameter 10:

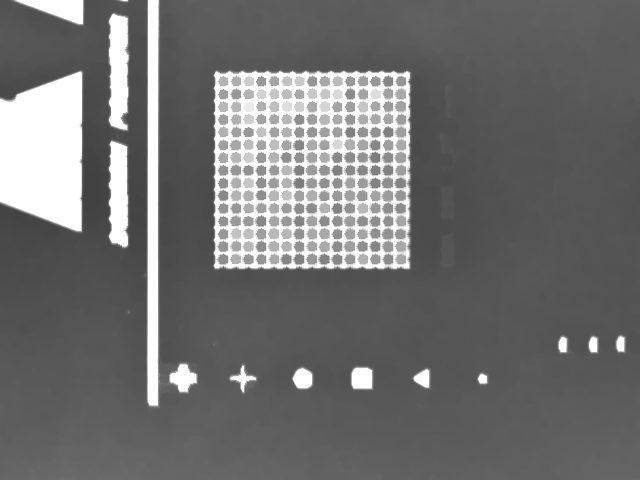

Here is an example of closing with a circular structuring element of diameter 10:

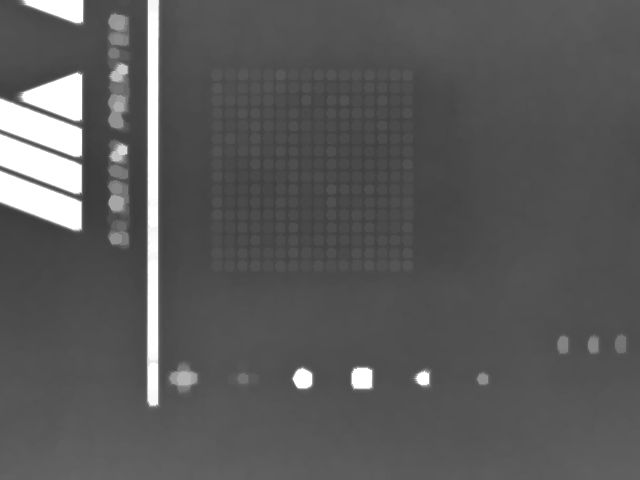

Here is an example of opening with a circular structuring element of diameter 10:

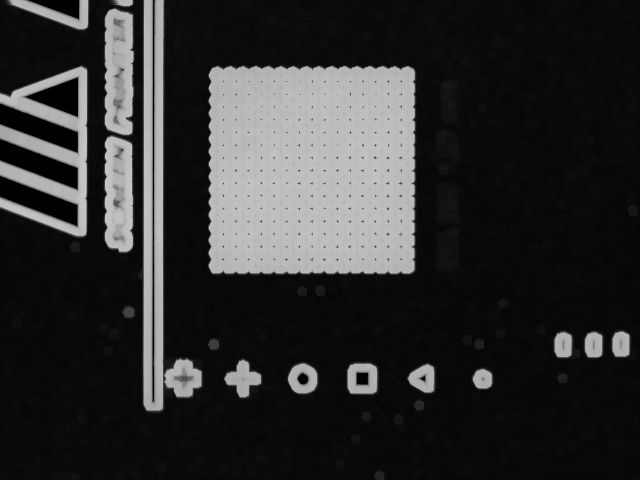

Here is an example of the morphological gradient with a circular structuring element of diameter 3:

Sample

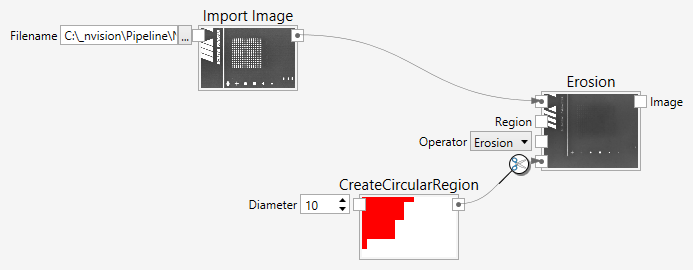

Here is an example that erodes an image.
