Combine Channels

Combines three channels to create a color image.

Inputs

First (Type: Image)

The first channel image.

Second (Type: Image)

The second channel image.

Third (Type: Image)

The third channel image.

Model (Type: String)

The color model of the resulting image.

Outputs

Image (Type: Image)

The output image.

Comments

This function combines three channels to a color image.

The color model specifies the color space of the resulting image and also the meaning of the channels. The following color models are available: RGB, HLS, HSI and LAB.

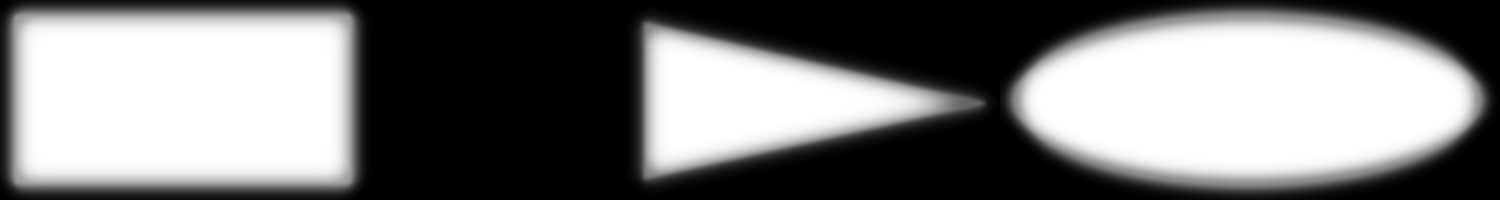

Given the following channels (red, green and blue from left to right):

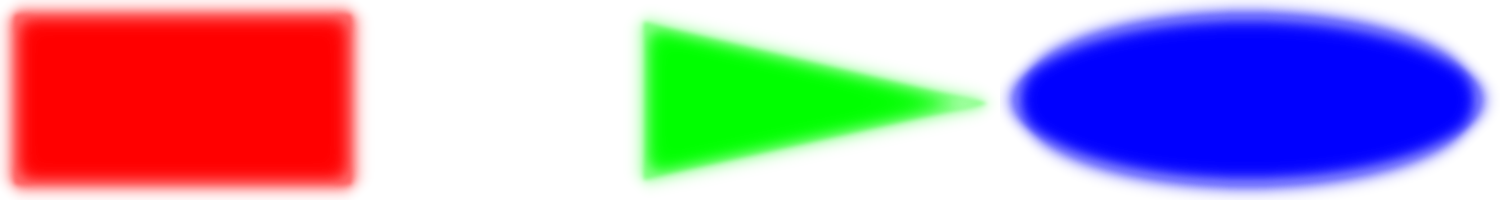

Here are the channels again visualized in their proper colors:

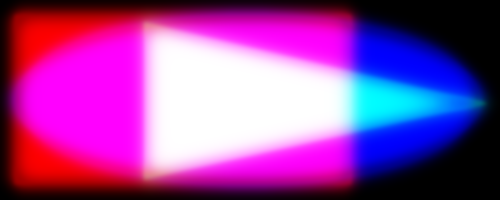

The result of the combination as an RGB image is:

Sample

Here is an example that combines three channels to form a color image.
