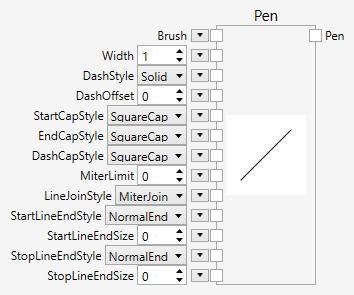

Pen

Creates a pen. A pen is used to specify outlines.

Inputs

Brush (Type: SolidColorBrushByte)

The brush.

Width (Type: Int32)

The width of the pen. A positive width scales with the zoom factor, a negative width does not scale.

DashStyle (Type: String)

The dash style, Solid, Dashed, Dotted, Dashdotted or Dashdotdotted.

DashOffset (Type : Double)

The offse into the dash pattern.

StartCapStyle (Type: String)

The cap style of the start point, FlatCap, SquareCap, RoundCap or TriangleCap.

EndCapStyle (Type: String)

The cap style of the end point, FlatCap, SquareCap, RoundCap or TriangleCap.

DashCapStyle (Type: String)

The dash cap style, FlatCap, SquareCap, RoundCap or TriangleCap.

MiterLimit (Type: Double)

The miter limit.

LineJoinStyle (Type: String)

The line join style, MiterJoin, BevelJoin, RoundJoin or MiterOrBevelCap.

StartLineEndStyle (Type: String)

The line end style of the start point, NormalEnd, FilledDiskEnd, FilledSquareEnd, FilledDiamondEnd, FilledArrowOutEnd, FilledArrowInEnd, BarEnd, BackslashEnd, SlashEnd, ArrowOutEnd, ArrowInEnd, FilledSlimArrowOutEnd, FilledSlimArrowInEnd, SlimArrowOutEnd or SlimArrowInEnd.

StartLineEndSize (Type: Double)

The size of the start line end.

StopLineEndStyle (Type: String)

The line end style of the stop point, NormalEnd, FilledDiskEnd, FilledSquareEnd, FilledDiamondEnd, FilledArrowOutEnd, FilledArrowInEnd, BarEnd, BackslashEnd, SlashEnd, ArrowOutEnd, ArrowInEnd, FilledSlimArrowOutEnd, FilledSlimArrowInEnd, SlimArrowOutEnd or SlimArrowInEnd.

StopLineEndSize (Type: Double)

The size of the stop line end.

Outputs

Pen (Type: PenByte)

The pen.

Sample

Here is an example that creates a yellowish half transparent brush and a wide pen using this brush.
