HybridMedian

Perform a hybrid median filter.

Inputs

Image (Type: Image)

The input image.

KernelSize (Type: Int32)

The kernel size.

Region (Type: Region)

Specifies an optional area of interest.

Outputs

Image (Type: Image)

The output image.

Comments

The hybrid median is a noise-reduction filter, which often performs better than simple averaging, especially for salt-and-pepper noise.

The hybrid median calculates the median of a cross-shaped kernel, the median of an x-shaped kernel, and finally the median of the center pixel and these two intermediate reslts.

The hybrid median is more edge-preserving than the standard median filter.

Here are a few results of the median filter with increasing kernel sizes:

Original:

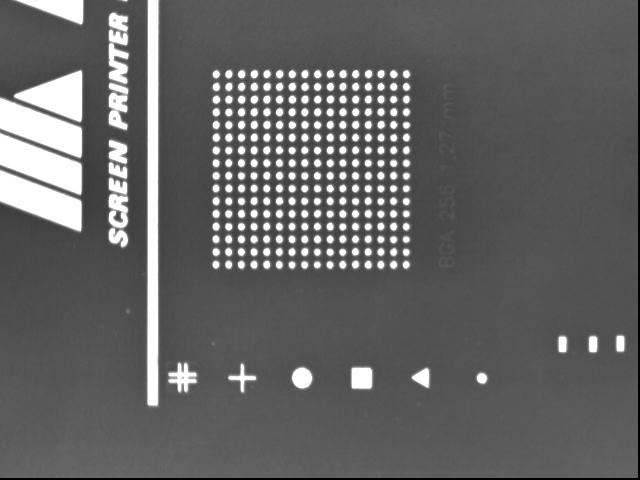

KernelSize = 3:

KernelSize = 5:

Sample

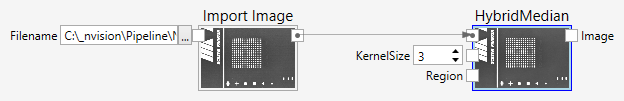

Here is an example that shows how to use the hybrid median filter.
