Unary Image Operator

Applies a unary point operation to an image. Unary point operations are applied pixel by pixel, the same way for every pixel.

The following operators are available:

Absolute

Absolute.

abs ( Image ) -> Result

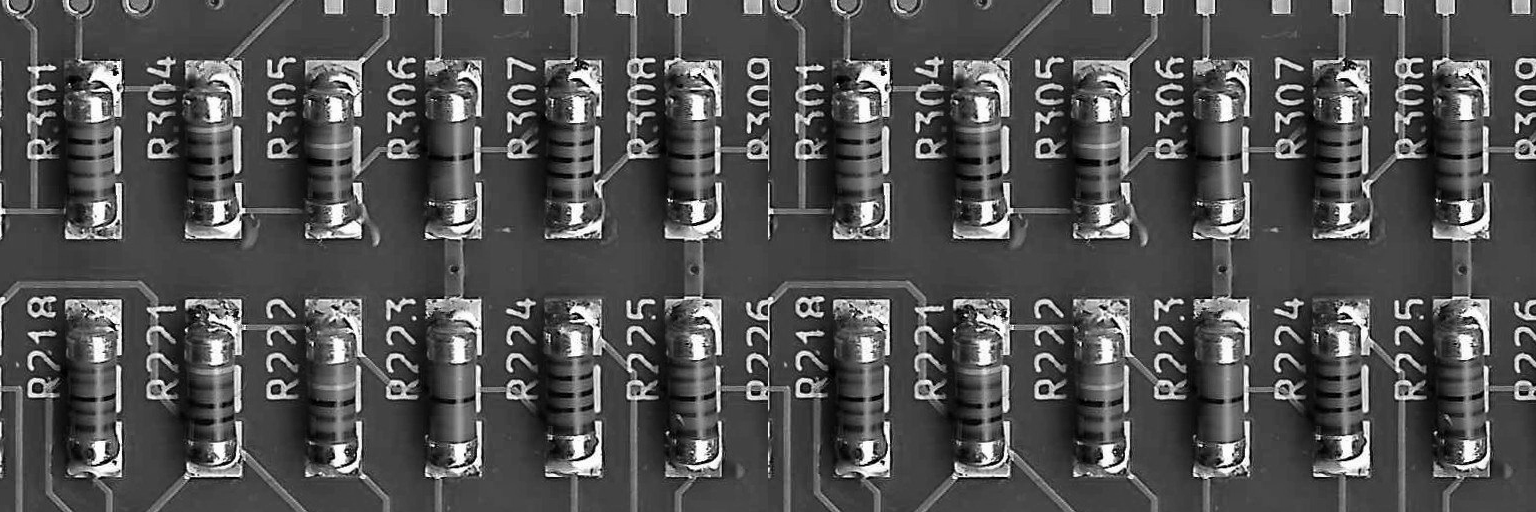

Decrement

Decrement by 1.

Image - 1 -> Result

Increment

Increment by 1.

Image + 1 -> Result

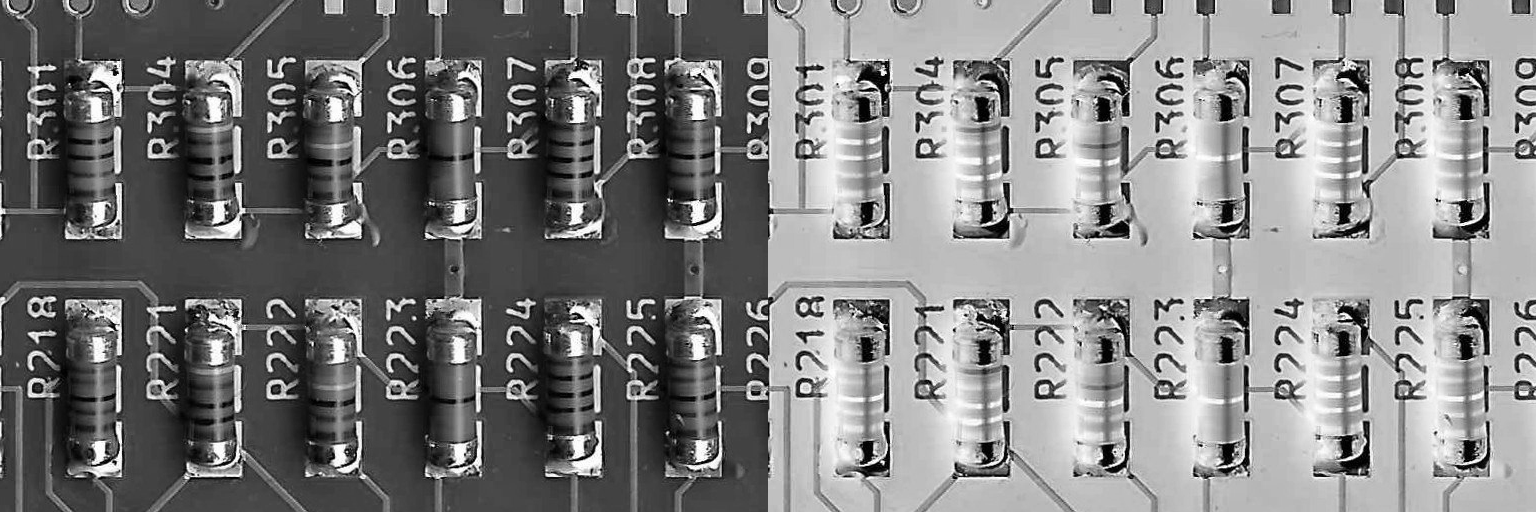

Negate

Negate (2’s complement).

• Image -> Result

Not

Not (1’s complement).

~ Image -> Result

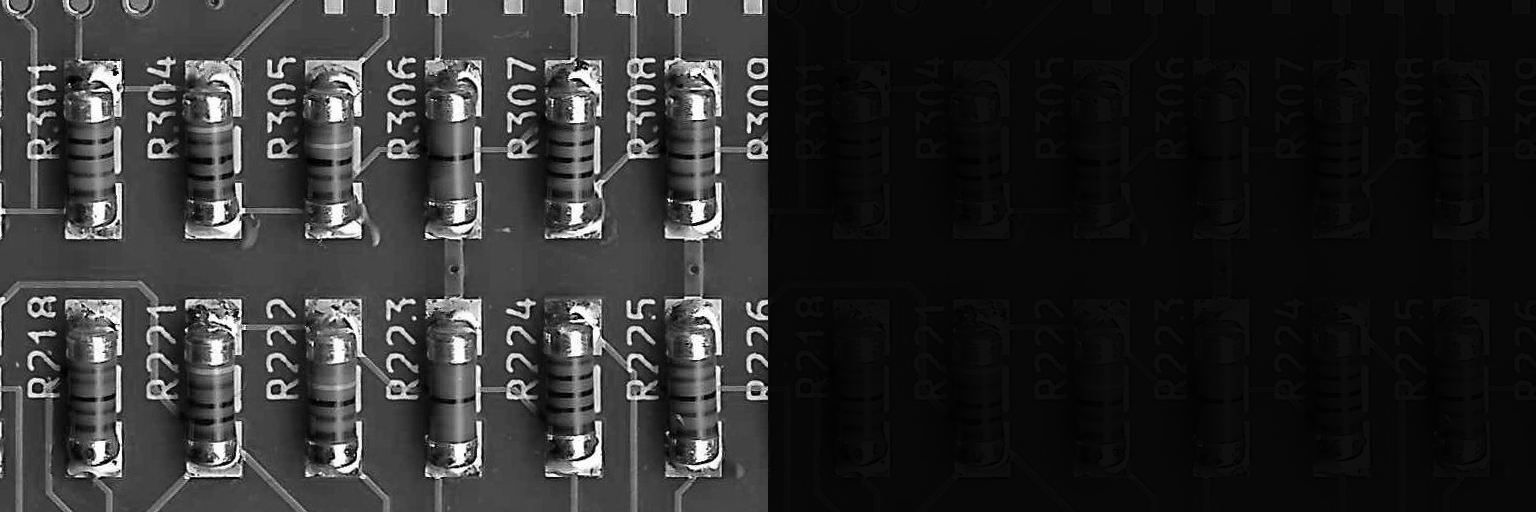

Square Root

Square root.

sqrt( Image ) -> Result

Inputs

Image (Type: Image)

The input image.

Operator (Type: string)

Specifies the operator.

operator	operation
++	increment
--	decrement
-	negate (2’s complement)
!	not (1’s complement)
abs	absolute
sqrt	square root

Outputs

Result (Type: Image)

The result image.
