Otsu Threshold

Calculates an optimal threshold with the Otsu method, given a histogram.

Inputs

Histogram (Type: Histogram)

The input histogram.

Outputs

Threshold (Type: Double)

The threshold value.

Comments

The Otsu Threshold node calculates a threshold value that can be used to segment an image into foreground and background. The algorithm assumes that the image contains two classes of pixels following bi-modal histogram (foreground pixels and background pixels), it then calculates the optimum threshold separating the two classes so that their combined spread (intra-class variance) is minimal.

Sample

Here is an example that calculates a threshold with the Otsu method.

Here is the original image:

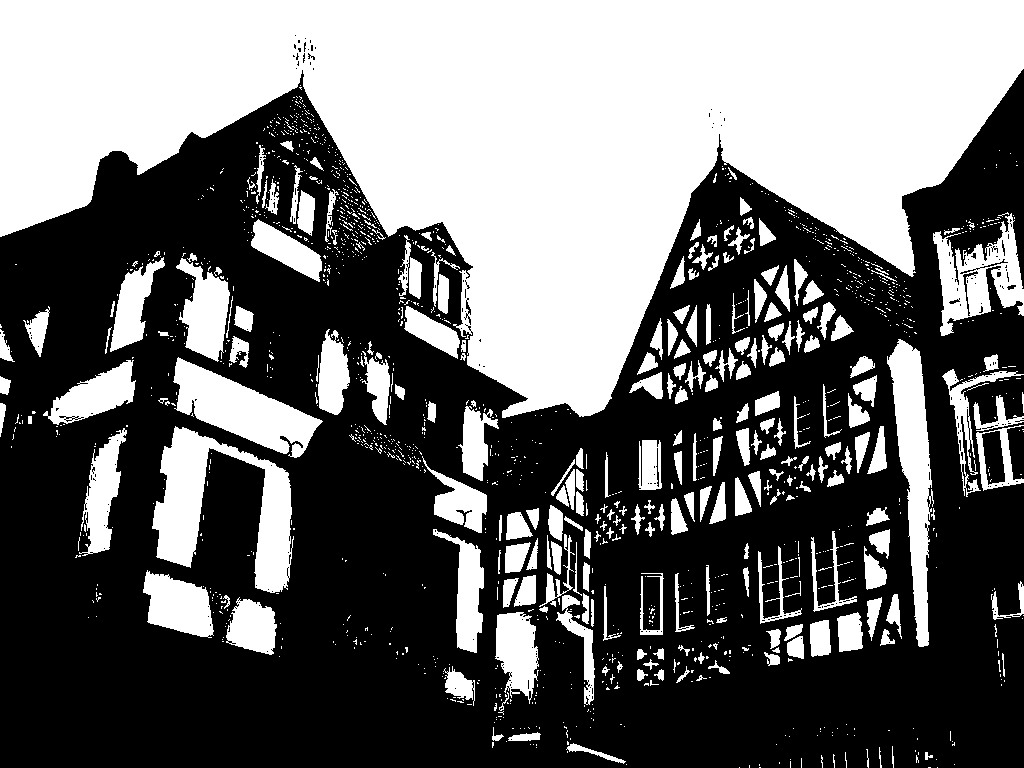

And here is the binary image thresholded with the Otsu threshold:
