Adam 6000 DigOut

Writes digital electrical outputs to an Adam-60xx ethernet module from Adavantech.

This node writes digital signals to an Adam-60xx module.

Inputs

Module (Type: Adam6000Module)

An Adam 60xx module instance.

DigOut (Type: Int32)

The numeric value that is written to the electrical outputs.

Sync (Type: object)

This input can be connected to any other object. It is used to establish an order of execution.

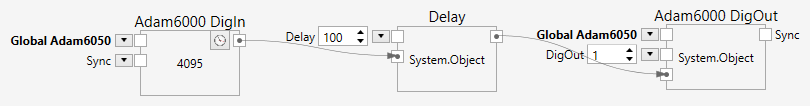

Here, the digital output is written after the digital input has been read.

Sometimes, if this is necessary for technical reasons, you can add a Delay node in order to introduce additional delay between synchronized nodes.

Outputs

Sync (Type: object)

Synchronizing object. It is used to establish an order of execution.

Sample

Here is an example:
