Gaussian

Filters an image using a gaussian kernel. A gaussian filter is a lowpass and blurs an image. The amount of blurring is determined by the parameter sigma, which in turn determines the size and the parameters of the convolution kernel.

Inputs

Image (Type: Image)

The input image.

Region (Type: Region)

Specifies an optional area of interest.

Sigma (Type: Double)

Determines the size of the kernel.

Outputs

Image (Type: Image)

The output image.

Comments

The gaussian filter is considered an optimal lowpass or bluring filter. It is isotropic if the filter kernel is large enough for a sufficient approximation (at least 5x5, i.e. sigma > 5/3). It behaves well in frequency space and is clearly superior to a box filter. The kernel size of the gaussian is 3 times sigma, rounded up to the next odd integer.

The filter kernel corresponds to a two-dimensional gaussian, where sigma determines to the width of the bell-shaped curve and

\[r = (x^2 + y^2)\]

is the distance from the center:

\[G(x, y) = e ^ -(x^2 + y^2)/(2*sigma^2)\]

Here are a few results of the gaussian filter with increasing sigma values:

Original:

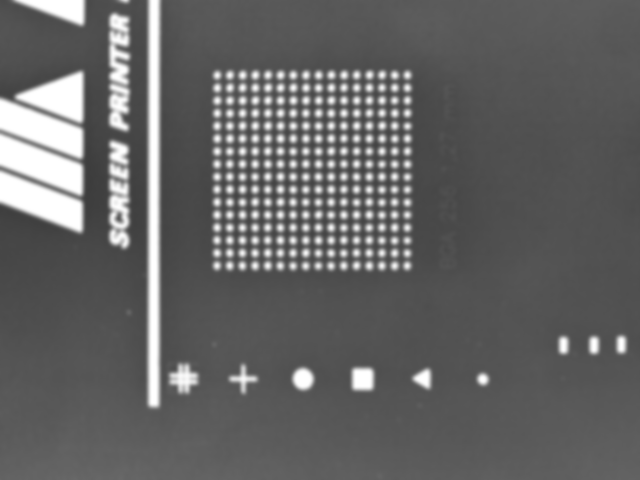

Sigma = 2:

Sigma = 4:

Sigma = 8:

Sigma = 16:

Sigma = 32:

Sigma = 64:

Sample

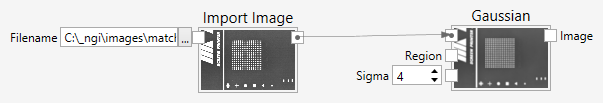

Here is an example that shows how to use the gaussian filter.
